Cable Assemblies and Production

RF Cable assemblies are manufactured at ResoNetRF

ResoNetRF offers a full range of RF coaxial connectors
designed to operate up to 18 GHz. Cable mount, panel mount, and PCB mount
options are available. PCB mounting options include through-hole, surface
mount, and SMA end-mount designs. Reverse polarization (RP) and other options are also available.



Typical Applications

  • Wireless Telecommunications
  • 5G/LTE
  • Wi-Fi
  • Test instruments
  • IoT devices
  • GPS

Our Services

  • Cutting, stripping, crimping and assembly of wires and
    cables
  • Large range of RF connector and RF Cable types are available
  • We can also manufacture from drawings provided.
  • All assemblies are tested for continuity, short circuits and insulation breakdown before final inspection and packaging.
  • Maximum frequency operation varies based on connector and cable selection

Enquiries

  • Send your enquiry with the following details:
  • Type of connector on each end of the cable
  • Type of cable to be used
  • Length of cable required
  • Quantity of cables required
  • Delivery time required / Project Deadline
  • We can supply detailed drawings for your requirement

CABLE TYPES



CABLE TYPEIMPEDANCEOUTSIDE DIAMETERCONDUCTORFREQUENCY RANGE
LMR100502.79MMSOLIDDC-5.8GHz
LMR195504.95MMSOLIDDC-5.8GHz
LMR240506.10MMSOLIDDC-5.8GHz
LMR4005010.29MMSOLIDDC-5.8GHz
RG174502.80MMSTRANDEDDC-2.5GHz
RG178501.93MMSTRANDEDDC-3GHz
RG316502.59MMSTRANDEDDC-3GHz
RG2135010.29MMSTRANDEDDC-1GHz
RG2145010.80MMSTRANDEDDC-11GHz
RG316502.59MMSTRANDEDDC-3GHz
RG58754.95MMSTRANDEDDC-1GHz
RG59506.15MMSOLIDDC-1GHz
U.FL-066501.32MMSTRANDEDDC-6GHz
U.FL-5016501.13MMSTRANDEDDC-6GHz

CONNECTOR TYPES

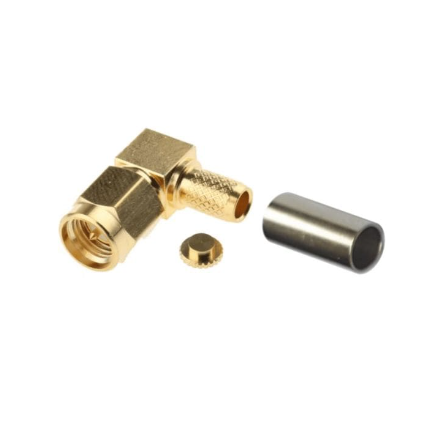

SMA

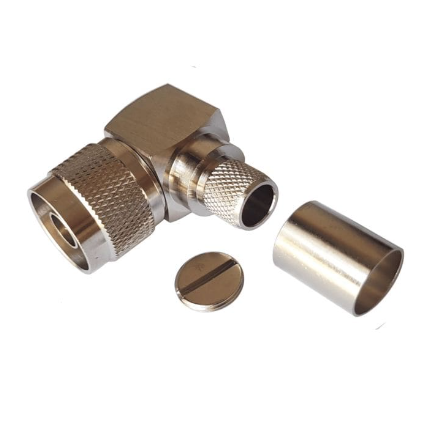

N-TYPE

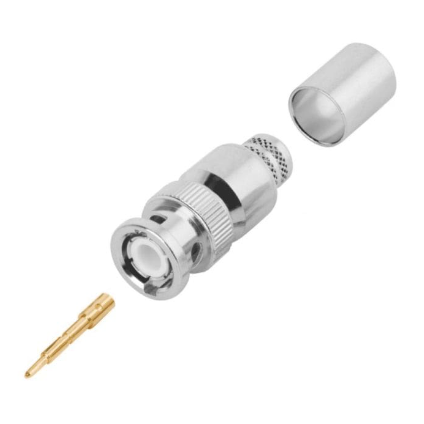

BNC

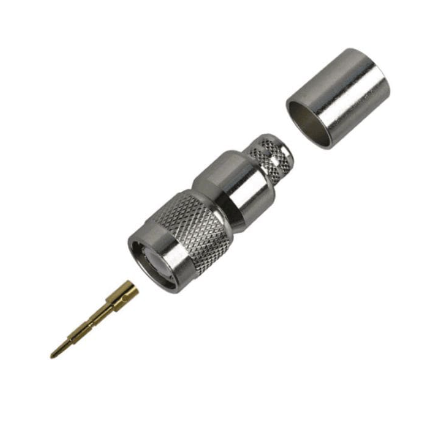

TNC

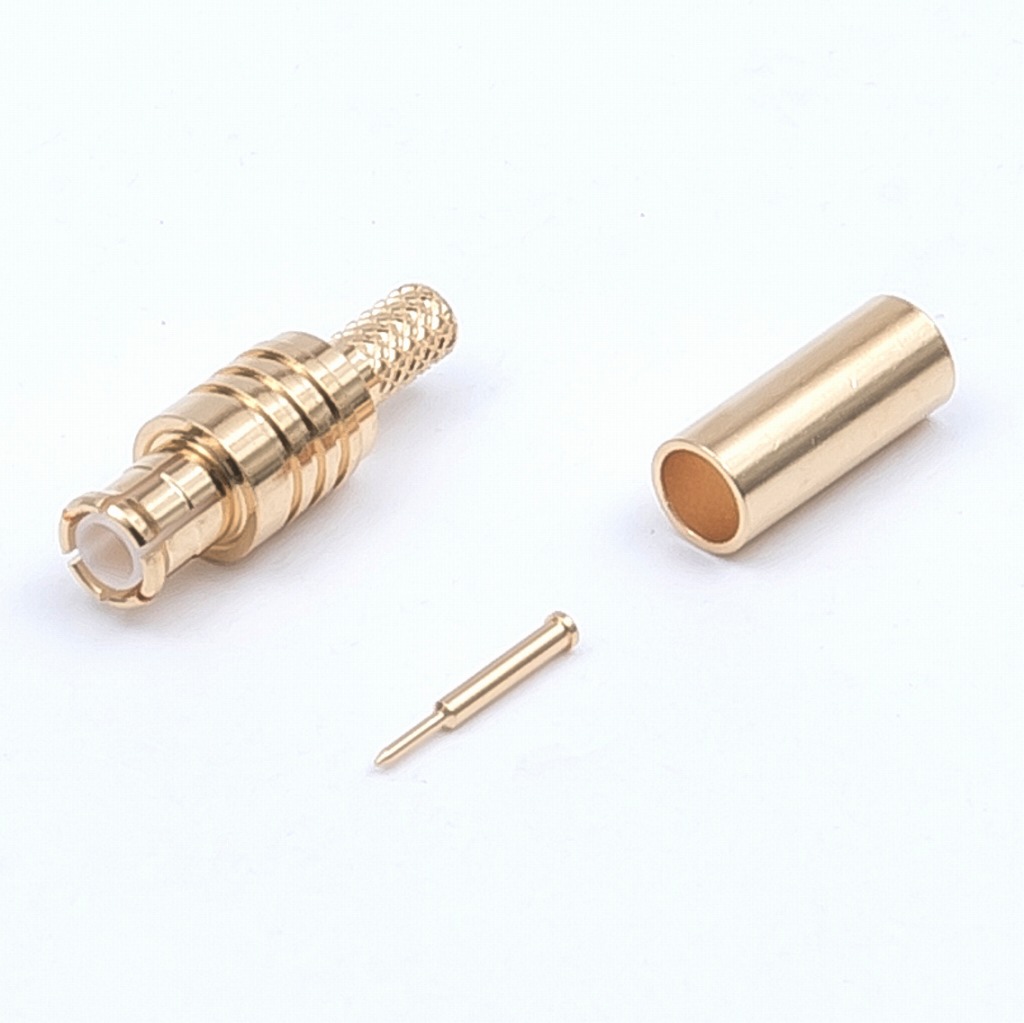

MCX

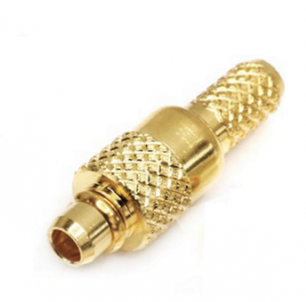

MMCX

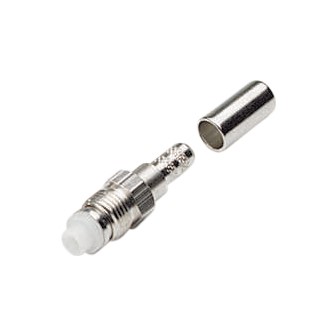

FME

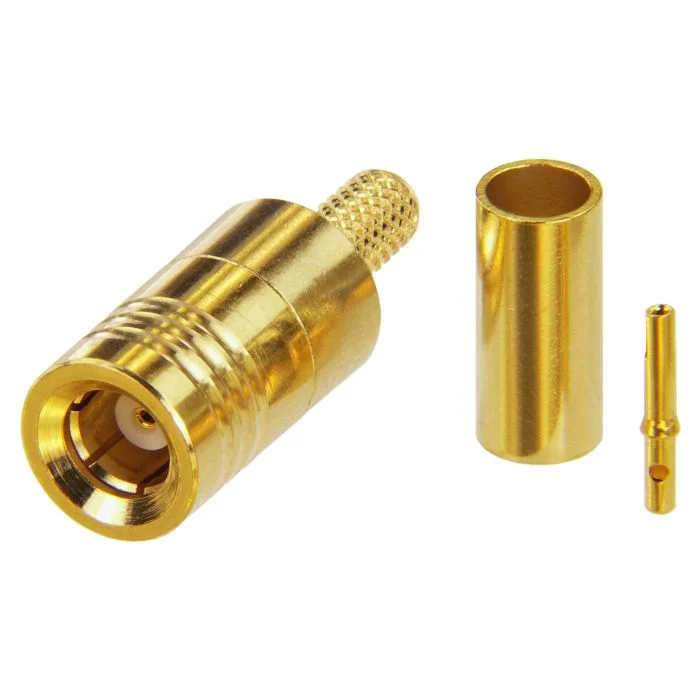

SMB
SMC

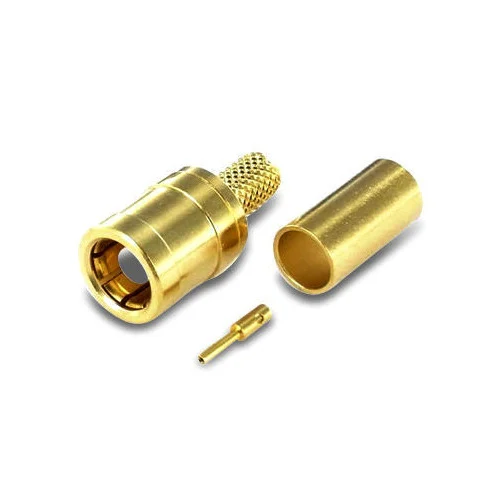

SSMB

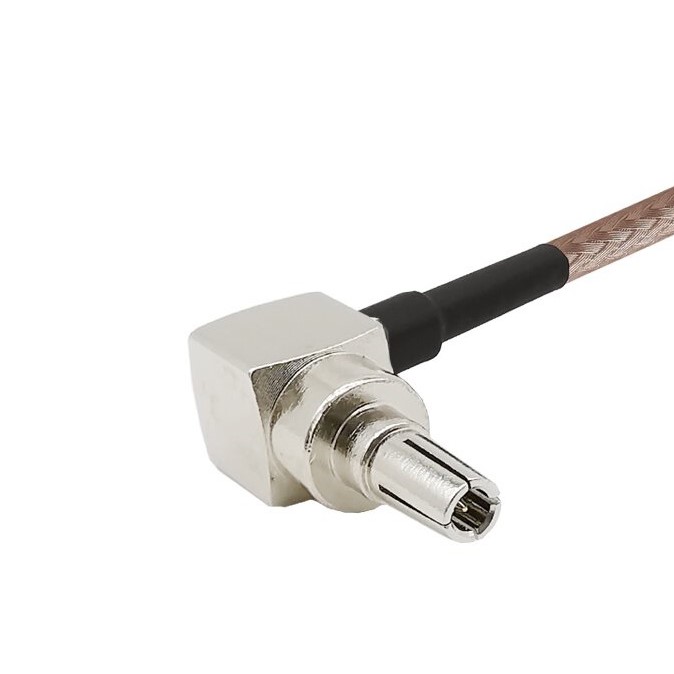

CRC9 / TS9

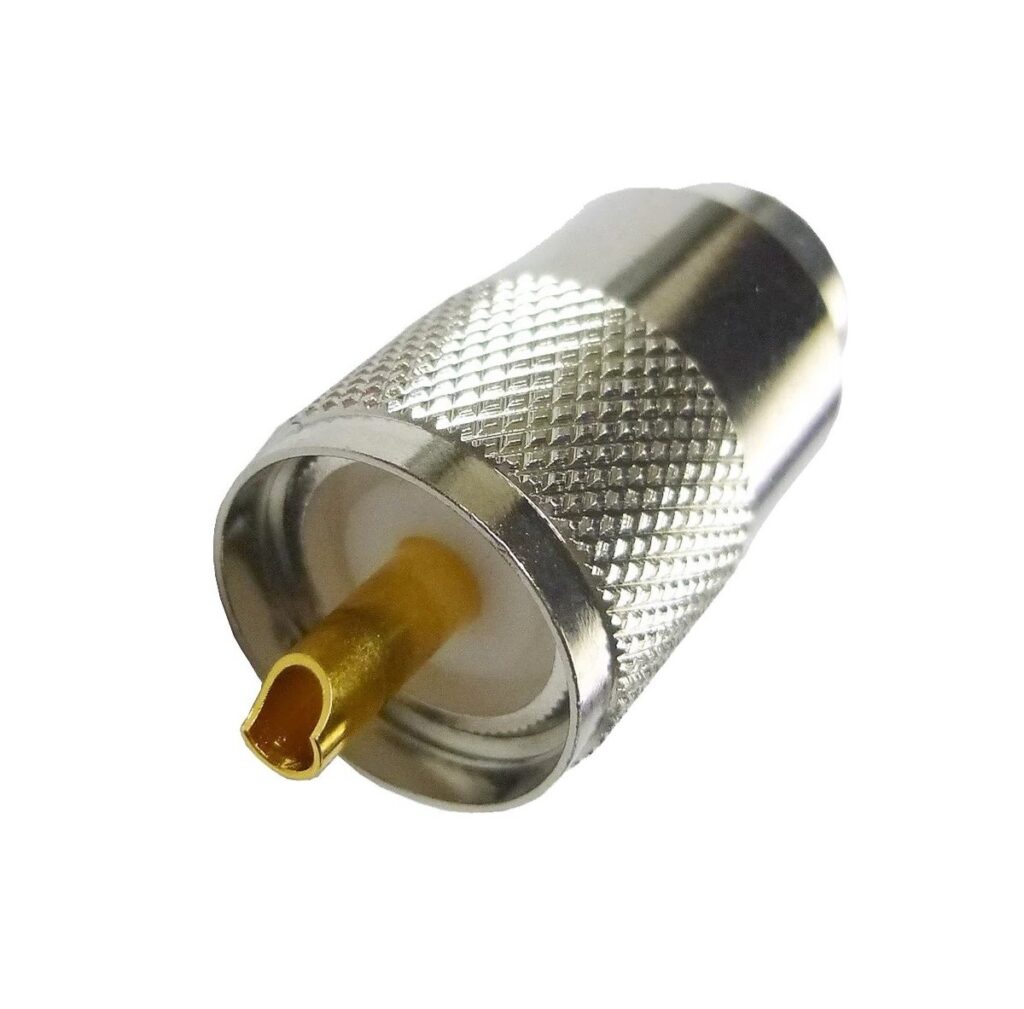

Other (U.FL, Ipex, and UHF)

For information on stock, pricing, or technical details regarding these items, please fill in and send this form
